Serie 254DV/DW

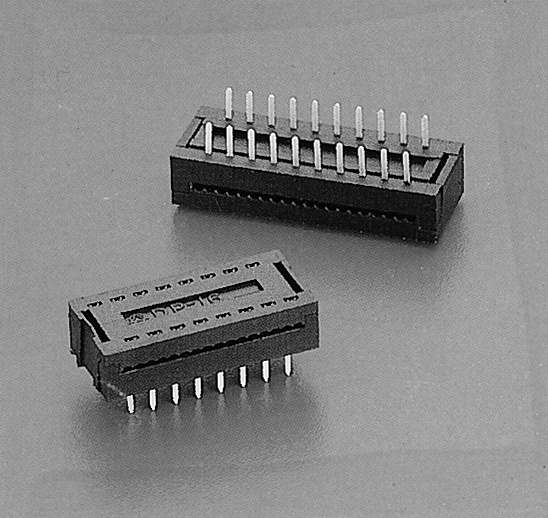

IC-Steckverbinder mit Schneid-/Klemmtechnik - Serie DV/DW
PCB 2,54 mm
Technisches Datenblatt
|
Artikel-Nr. |
Polzahl | SPECIFICATIONS | |||
| 254DV-008TB | 8 | 2X4 | Insulator-body | ||
| 254DV-010TB | 10 | 2X5 | |
PBT & 30% glass filled UL94-V0 | |
| 254DV-014TB | 14 | 2X7 | |
|
|
| 254DV-016TB |
16 |
2X8 | Contact | ||
| 254DV-020TB | 20 | 2X10 | |
Phosphorbronze tin plated | |
| 254DW-024TB | 24 | 2X12 | |
|
|
| 254DW-028TB | 28 | 2X14 | Contact-resistance | ||
| 254DW-032TB | 32 | 2X16 | |
30mOhm max. at DC 100mA | |
| 254DW-040TB | 40 | 2X20 | Insulator resistance | ||
| |
|
|
|
1000MOhm min. at DC 500V | |
| |
|
|
Currant rating | ||
| |
|
|
|
1A DC | |
| |
|
|
Dielectric withstanding voltage | ||
| |
|
|
|
AC 500V for 1 minute | |
| |
|
|
Operating temperature | ||
| |
|
|
|
-55°C to +105°C | |
| lagerm�ssige
Werte |
Finish | ||||
| |
|
|
|
verzinnte Kontakte | |
 |
|
