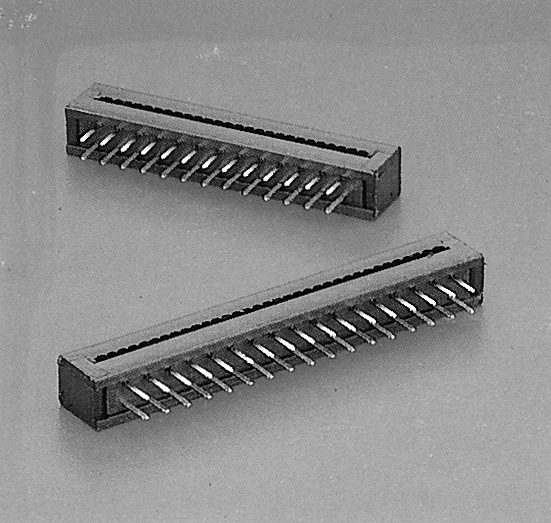

Serie 254DU
Leiterplattenverbinder mit Schneid-/Klemmtechnik - Serie DU
PCB 2,54 mm
Technisches Datenblatt
|
Artikel-Nr. |
Polzahl | SPECIFICATIONS | ||
| 254DU-010GB | 10 | 2X5 | Insulator-body | |
| 254DU-014GB | 14 | 2X7 | |
PBT & 30% glass fiber UL94-V0 |
| 254DU-016GB | 16 | 2X8 | |
|
| 254DU-020GB | 20 | 2X10 | Contact | |
| 254DU-024GB | 24 | 2X12 | |
Phosphorbronze gold plated |
| 254DU-026GB | 26 | 2X13 | |
|
| 254DU-034GB | 34 | 2X17 | Contact-resistance | |
| 254DU-040GB | 40 | 2X20 | |
20mOhm max. at DC 1A |
| 254DU-044GB | 44 | 2X22 | Insulator resistance | |
| 254DU-048GB | 48 | 2X24 | |
1000MOhm min. at DC 500V |
| 254DU-050GB | 50 | 2X25 | Currant rating | |
| 254DU-060GB | 60 | 2X30 | 3A DC | |
| 254DU-064GB | 64 | 2X32 | Dielectric withstanding voltage | |
| |
|
|
|
AC 500V for 1 minute |
| |
|
|
Operating temperature | |
| |
|
|
|
-55°C to +105°C |
| lagerm�ssige
Ausf�hrungen |
Finish | |||
| |
|
|
|
vergoldet |
 |
|
