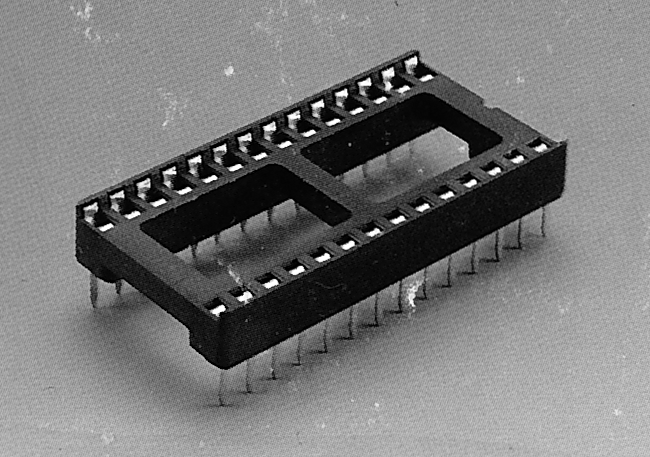

Serie 254CS/CU
Dual In-Line IC-Sockel
PCB 2,54 mm - Low Cost IC-Fassungen
Ausführung CS D: 7,62 mm
Ausführung CU D: 15,24 mm
Farbe: schwarz
Technisches Datenblatt
| Specifications | |
| Insulator body | PBT & 30% glass fiber UL94-V0 |
| Contact | Phosphorbronce tin plated |
| Contact resistance | 20mOhm max. at DC 1A |
| Insulator resistance | 5000M Ohm min. DC 500V |
| Current rating | 3A DC |
| Dielectric withstandung voltage | AC 500V for 1 minute |
| Operating temperature | 55°C to +105°C |
| Art.Nr.: | Polzahl |
| 254CS-008TB | 8 |
| 254CS-014TB | 14 |
| 254CS-016TB | 16 |
| 254CS-020TB | 20 |
| 254CU-024TB | 24 |
| 254CU-028TB | 28 |
| 254CU-040TB | 40 |
| lagerm�ssige Ausf�hrung | |
 |
|
PS Potentiometer Service GmbH
